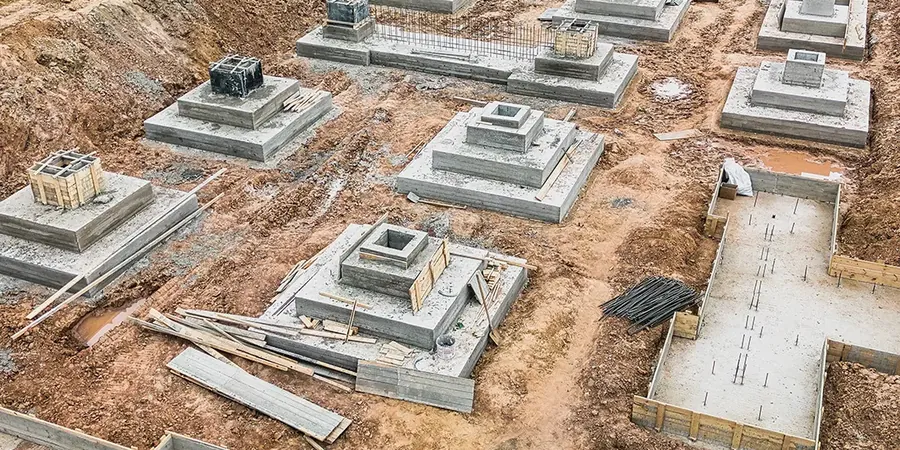

Grande Prairie’s expansion from a frontier trading post into a bustling service hub for the Peace Country has placed heavy demands on its subsurface. The city sits on a complex stratigraphy of Cretaceous bedrock, overlain by thick sequences of glacial till and glaciolacustrine clays deposited by ancient Lake Peace. With a population now exceeding 64,000 and a frost depth that can reach over 2.2 meters, simply pouring a footing is rarely an option for commercial or industrial structures. Our pile foundation design process integrates site-specific CPT testing to map the transition from soft silts into dense till, ensuring the pile toe finds competent bearing. For large-footprint warehouses near the airport or along Resources Road, we often pair deep foundations with a mat foundation analysis when structural loads demand uniform settlement control across variable soil profiles.
In Grande Prairie, pile design must consider not just the bedrock depth but the substantial set-up gain in the overconsolidated glacial till — a factor that can reduce pile length if measured correctly.
Methodology and scope
Local considerations
A six-storey mixed-use project proposed along 108 Street encountered a buried preglacial channel filled with soft organic silt at 18 meters — a feature invisible from surface topography. The initial geotechnical report recommended a spread footing system, but the structural engineer suspected differential settlement would crack the brick veneer and interior partitions. Our pile foundation design team re-evaluated the site using additional CPT soundings and a detailed stratigraphic model, ultimately specifying a group of driven closed-end pipe piles to bypass the channel entirely and bear on the underlying till. The alternative — under-reamed footings within the soft layer — would have required extensive dewatering and triggered a settlement-driven serviceability failure. This scenario underscores why Grande Prairie projects demand a pile design that respects the three-dimensional variability of the buried bedrock surface: a single borehole can be misleading. Ignoring these paleochannels or the potential for artesian conditions in the Paskapoo Formation can turn a straightforward foundation bid into a costly change order.
Applicable standards
NBCC 2020 — Structural Design, Part 4, CSA A23.3:19 — Design of Concrete Structures, CFEM (Canadian Foundation Engineering Manual) — 4th Edition, ASTM D3966 — Standard Test Methods for Deep Foundations Under Lateral Load, ASTM D1143 — Standard Test Methods for Deep Foundations Under Static Axial Compressive Load
Associated technical services
Axial Capacity and Driveability Studies
We compute ultimate and allowable capacities using the alpha/beta method for clays and the Nordlund method for granular layers. Driveability analysis with GRLWEAP ensures the selected hammer can advance the pile to design depth without refusal or damage.
Lateral Load and Group Analysis
Using LPILE and GROUP software, we model p-y curves for the upper stiff clay crust and the underlying weathered shale. Results inform pile cap reinforcement, embedment depths, and spacing to avoid group shadowing effects.
Helical Pile and Micro-Pile Design
For underpinning existing structures or light industrial mezzanines, we design helical pile arrays with torque-to-capacity correlations verified by on-site load tests. Helix configurations are optimized for the dense till matrix.
Construction Monitoring and PDA Testing
We provide Pile Driving Analyzer (PDA) testing during installation and CAPWAP signal matching for capacity verification. Thermal integrity profiling for cast-in-place piles detects necking in the shallow frost zone.
Typical parameters
Frequently asked questions
What depth are piles typically driven to in Grande Prairie?
Pile depths in Grande Prairie typically range from 15 to 45 meters, depending on the bedrock profile. In areas near the Bear Creek valley, the Smoky Group shale can be shallower, while upland sites may require longer piles to reach competent bearing beneath the glacial till sequence.
How does frost depth affect pile design in northern Alberta?
The 2.2 to 2.8 meter frost penetration in Grande Prairie requires pile caps to be placed below the active frost zone. We also specify isolation detailing — such as a compressible layer around the upper pile shaft — to prevent adfreeze forces from lifting the pile during freeze-thaw cycles.
What is the typical cost range for a pile foundation design package?
A complete pile foundation design package for a commercial project in Grande Prairie generally falls between CA$2,600 and CA$9,240, depending on the number of pile types analyzed, the complexity of the soil profile, and whether dynamic testing supervision is included.
Can you design pile foundations for seismic loads per the NBCC?
Yes. We follow the seismic provisions of NBCC 2020, which classifies much of Grande Prairie as Site Class D or E. Our designs include kinematic soil-pile interaction checks and curvature demands for piles crossing interfaces between soft clay and stiff bedrock during the design earthquake.
Do you handle pile design for industrial tanks and silos?
Absolutely. For heavy agricultural terminals and oilfield storage, we design pile groups to resist wind-induced overturning moments and the high edge pressures common in tank ring foundations. Settlement analysis ensures the tank floor remains within the allowable differential movement to prevent piping connections from failing.
